Short-Form Measuring Cylinders PMP TPX®

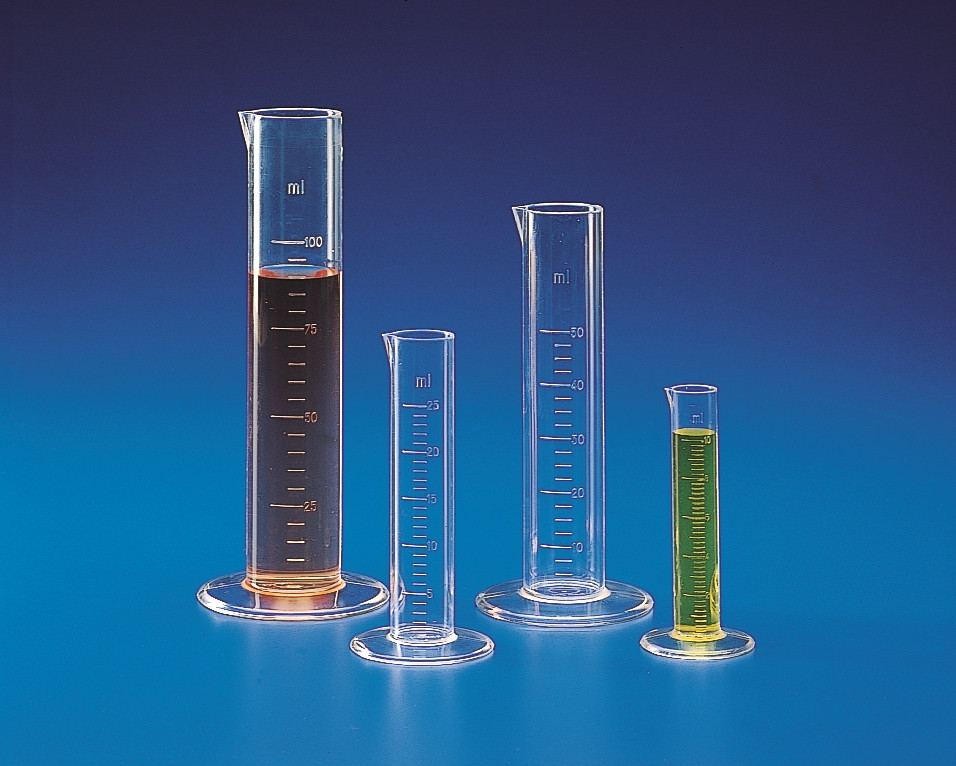

The PMP TPX® Short-Form Measuring Cylinders are precision instruments designed for the measurement of liquids in chemical and food laboratories. Made from Polymethylpentene (TPX®), they are distinguished by their short profile and wide circular base, which makes them particularly stable and suitable for use in confined spaces such as fume cupboards. The raised graduation, which remains unchanged over time, ensures easy and accurate volume reading.
Features and Materials
- Material: Polymethylpentene (TPX®), known for its excellent chemical resistance and transparency.
- Shape: Short form with a wide circular base for maximum stability.
- Graduation: Raised, permanent, and easy to read.
- Autoclavable: Can withstand sterilisation in an autoclave without alterations.
- Thermal resistance: Can endure temperatures up to +170°C.
| Art. | Cap. ml | Grad. ml | Subdivis. ml | O.D. Ø mm | h mm |
|---|---|---|---|---|---|
| 1332 | 10 | 2 | 0,25 | 16 | 87 |
| 1333 | 25 | 5 | 1 | 22 | 107 |
| 1334 | 50 | 10 | 2,5 | 29 | 143 |
| 1335 | 100 | 25 | 5 | 34,5 | 177 |
| 1336 | 250 | 50 | 10 | 46 | 263 |
| 1337 | 500 | 100 | 10 | 56 | 302 |
| 1338 | 1000 | 200 | 25 | 71 | 331 |
| 1339 | 2000 | 400 | 50 | 92 | 369 |
