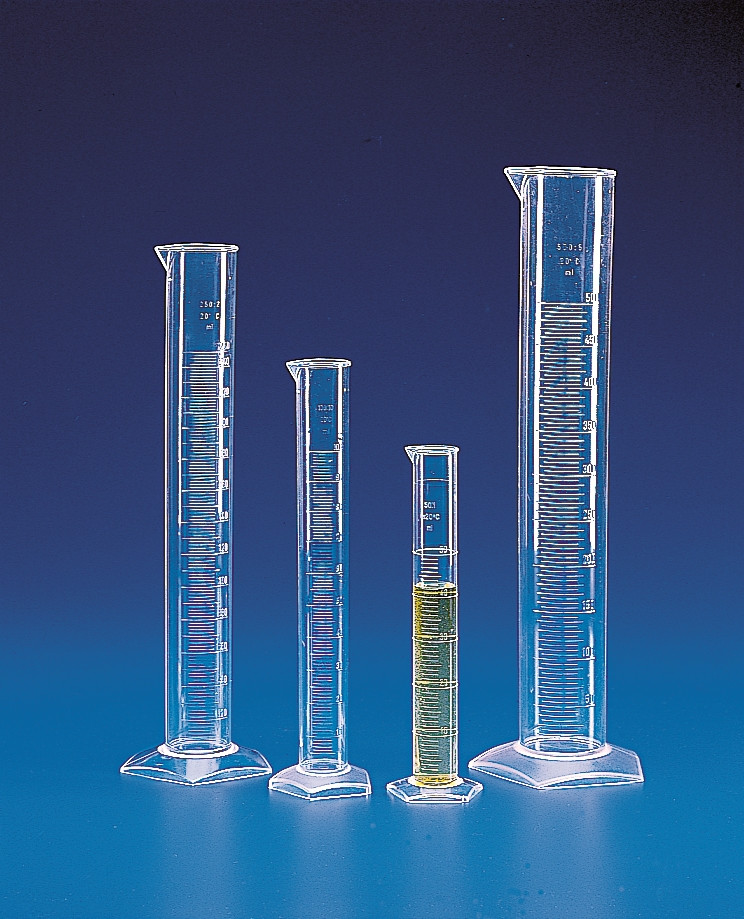

Graduated Tall-Form Measuring Cylinders Class B PMP TPX®
The Graduated Tall-Form Measuring Cylinders in Class B PMP (TPX®) from Kartell LABWARE are precision instruments made of transparent plastic, ideal for measuring liquids with high accuracy. Made from Polymethylpentene, they offer excellent chemical and thermal resistance, ensuring reliability and durability over time. Compliant with ISO 6706, they are designed for professional and safe use in laboratories and other technical applications.
Features and Materials
- Material: Polymethylpentene (TPX®), transparent and chemically cleaner than glass
- Regulation: Compliant with ISO 6706 and Regulation (EU) No 10/2011 for food contact
- Graduation: Permanent, embossed for easy reading and resistant to autoclaving
- Design: Cylindrical shape with nearly parallel walls for equidistance of graduation lines
- Spout: Designed to minimize dripping
- Base: Pentagonal with a recess for enhanced stability
- Resistance: Autoclavable at +121°C for 20 minutes, usable up to +170°C
- Properties: total absence of meniscus
PMP (TPX®)
| Art. | Cap. ml | Grad. ml | Subdivis. ml | Toll. ml | O.D. Ø mm | h mm |
|---|---|---|---|---|---|---|
| 1570 | 10 | 2 | 0,2 | + / - 0,2 | 13,5 | 139 |
| 1571 | 25 | 5 | 0,5 | + / - 0,5 | 18,5 | 195 |
| 1572 | 50 | 10 | 1,0 | + / - 1,0 | 26 | 199 |
| 1573 | 100 | 10 | 1,0 | + / - 1,0 | 31 | 249 |
| 1574 | 250 | 20 | 2,0 | + / - 2,0 | 41,5 | 315 |
| 1575 | 500 | 50 | 5,0 | + / - 5,0 | 55 | 361 |
| 1576 | 1000 | 100 | 10,0 | + / - 10,0 | 66 | 438 |
| 1577 | 2000 | 200 | 20,0 | + / - 20,0 | 84 | 531 |
