Sedimentation Imhoff Cone

The Sedimentation Imhoff Cone is a conical-shaped container designed for the determination of suspended solids in liquids and for static sedimentation tests. Compliant with DIN 12672 standards, it is made from high-quality transparent material with permanent graduations for easy reading and precision in measurements.

Features and Materials

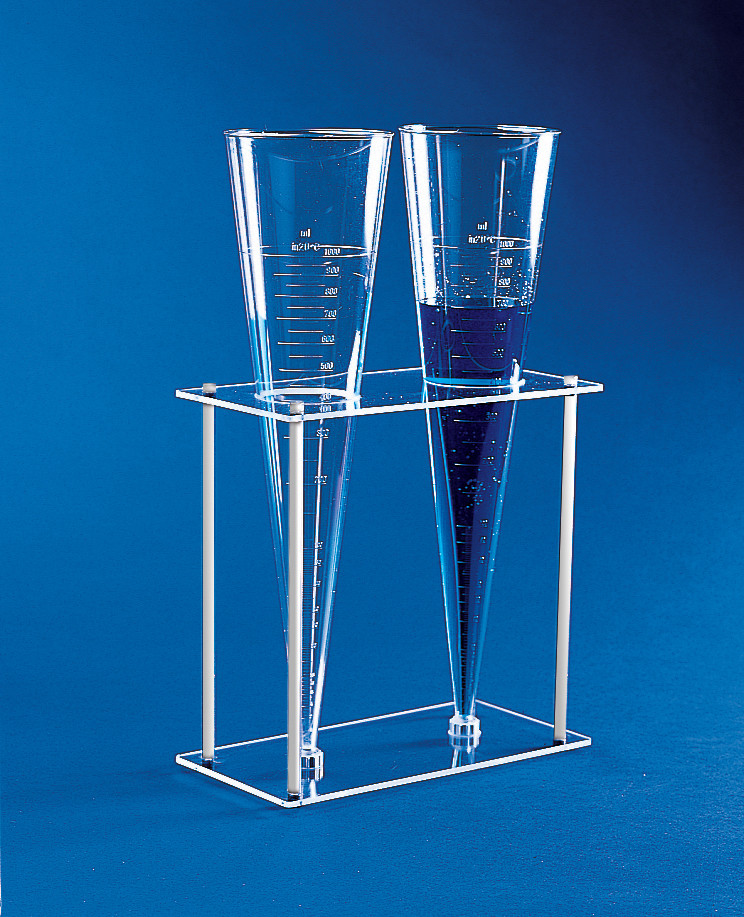

The cone is produced from Styrene-Acrylonitrile (SAN), a transparent material that ensures durability and optimal visibility of the contents. The graduated scale, printed in relief, starts from the apex of the cone and covers a range from 0.1 ml to 1000 ml with a tolerance of ±5% according to DIN 12672. The product features a screw cap at the bottom that acts as a drain plug, allowing for easy emptying and cleaning. The Kartell logo and recycling symbol are printed on the top. The cone can be supported by a two-place stand (code 1056), available for separate purchase.

Technical Specifications

• Material: SAN (Styrene-Acrylonitrile)
• Capacity: 1000 ml
• Graduation: from 0.1 ml to 1000 ml
• Graduation tolerance: ±5%
• Top diameter: OUT. 124.50 mm and IN. 117.70 mm
• Base diameter: OUT. 18.70 mm and IN. 8.70 mm
• Total height with cap: 478.40 mm (±0.3 mm)
• Total height without cap: 474.70 mm (±0.3 mm)

These features make the Imhoff Cone a reliable instrument that complies with standards for laboratory analysis in the field of sedimentation and water quality.
